Versatile Milling Solution for Wet & Dry Granulation, Pulverization, and Mixing

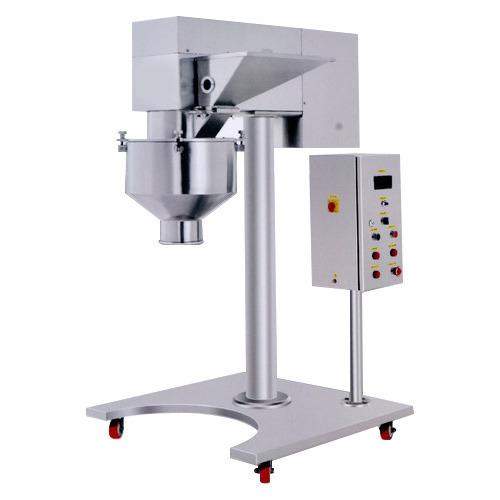

Our Multi Mill is a flexible and compact milling solution designed for a wide range of size reduction, granulation, pulverization, and mixing applications. It operates on the principle of variable force impact and cutting, using a rotating blade and perforated screen. Ideal for both wet and dry granulation processes, it offers consistent particle sizing with high output and low heat generation.
Suitable for use in pharmaceuticals, food, cosmetic, and chemical industries, the Multi Mill is built with GMP standards and is available in portable, flameproof, and cleanroom-compliant designs.
- Multiple uses: milling, granulating, pulverizing, shredding, and mixing
- Interchangeable screens for flexible output sizes
- Variable speed control via VFD (optional)
- No dust generation and low noise operation
- cGMP-compliant construction with SS316 contact parts
- Easy dismantling for quick cleaning and maintenance
- Available in flameproof and ATEX-certified models for hazardous zones
- Pharmaceutical: Wet/dry granule sizing, powder mixing
- Nutraceuticals: Herbal and supplement formulation
- Cosmetics: Powder blending, active mixing
- Chemical: Pigments, resins, catalysts
- Food: Spices, starches, seasonings
Parameter | Specification |
Output Capacity | 50 to 250 kg/hr (Depending on product & screen) |
Rotor Speed | 750 to 3000 RPM (Variable with VFD) |
Material of Construction | SS316 / SS316L (Product Contact Parts) |
Motor Power | 2 HP to 7.5 HP (Model-dependent) |
Screen Diameter | 250 mm to 400 mm (Interchangeable) |
Feed Size | Up to 12 mm |
Discharge Height | Customizable (Standard: 700 to 1000 mm) |
Mounting | Mobile (Caster Wheels) or Fixed |
Control Panel | Standard / Flameproof / PLC-HMI (Optional) |
Cleaning System | Manual / WIP (Optional) |
Certifications | GMP / CE / ATEX / Flameproof (Optional) |
