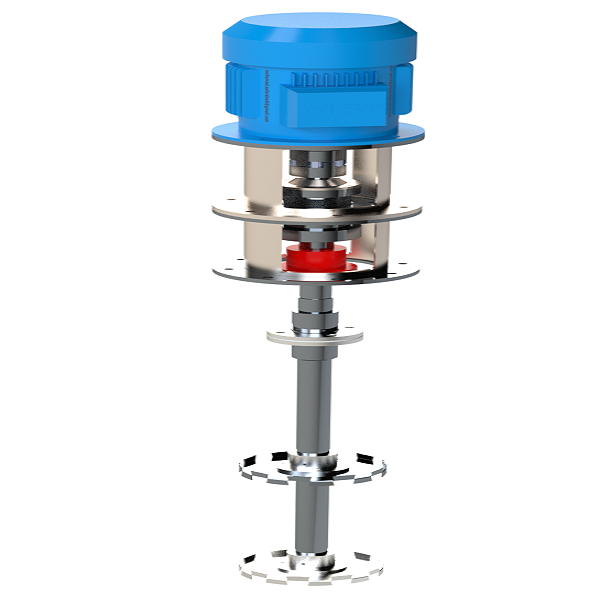

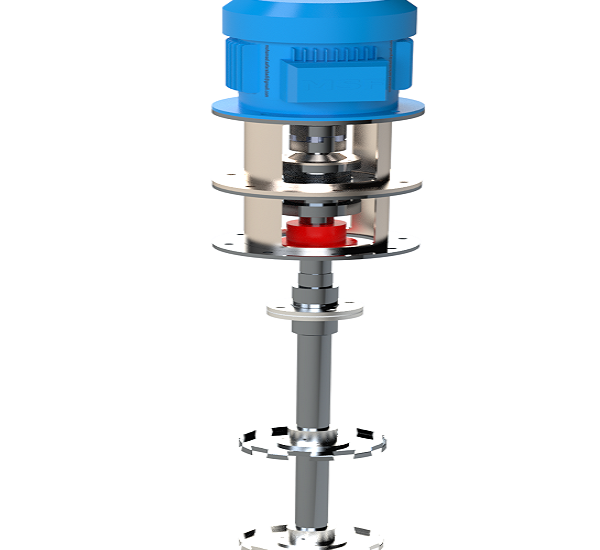

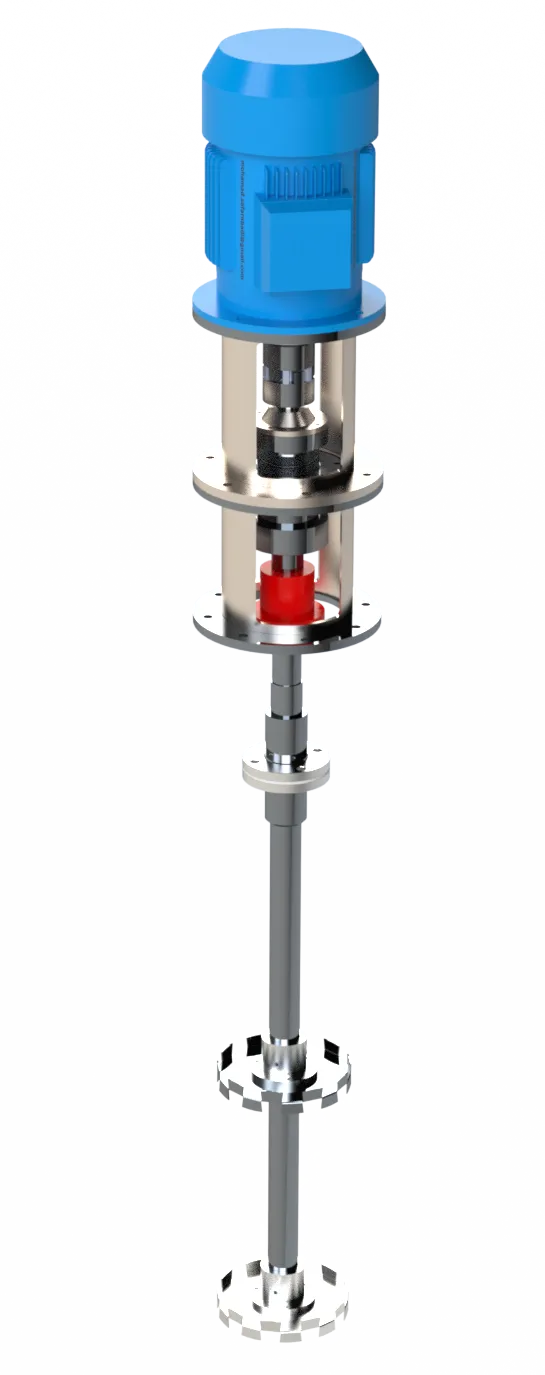

A cowl agitator is a high-speed mixing device with a serrated or toothed disc-shaped impeller operating at high rotational speed, generating intense radial shear for dispersion, emulsification, and particle size reduction in low to moderate viscosity fluids. Widely used in paint, pharmaceutical, cosmetic, and ink manufacturing where rapid pigment dispersion and powder incorporation are required in batch vessels.
The serrated impeller rotates at high speed, creating a radial discharge jet that drives a characteristic doughnut-shaped recirculation pattern throughout the vessel. Intense localised shear at the blade tooth tips breaks agglomerates and disperses particles. The ascending recirculation loop draws surface powder into the mixing zone; the descending loop returns wetted particles to the high-shear zone below the disc.
Challenges
Air Entrainment and Foam Formation
At high speeds in unbaffled vessels, a surface vortex draws headspace air into the dispersion, introducing bubbles that cause product quality defects including pinholes in applied coatings and reduced shelf stability in emulsified products.
Batch Overheating During Sustained High-Speed Operation
Prolonged high-speed operation transfers significant energy into the batch as heat, raising temperature gradually throughout the mixing cycle and risking degradation of thermally sensitive resins, emulsions, and biological active ingredients.
Viscosity Ceiling Above 10,000–20,000 cP
As product viscosity increases, the radial discharge pattern and doughnut recirculation collapse, leaving large portions of the batch unmixed and reducing dispersion efficiency significantly without supplementary bulk agitation.
Impeller Tooth Wear from Abrasive Pigments
Repeated processing of hard abrasive pigments such as titanium dioxide and iron oxide progressively erodes the serrated tooth profile, reducing shear intensity at the disc periphery and degrading dispersion performance over time.
Inconsistent Mixing in Large Vessels Without Supplementary Agitation
In large-diameter vessels, the radial discharge from a single cowl impeller may not generate sufficient circulation to reach all regions of the batch, leaving unmixed zones at the vessel periphery and base.
Solutions
- Baffled Vessel or Eccentric Impeller Positioning: Installing four vessel baffles or offsetting the impeller shaft from the vessel centreline suppresses surface vortex formation, converting rotational energy into productive axial and radial recirculation throughout the batch volume.
- Jacketed Vessel with Active Cooling During Processing: Maintaining cooling water flow through the vessel jacket throughout the dispersion cycle removes heat generated by the high-speed impeller, keeping batch temperature within acceptable limits for thermally sensitive formulations.
- Variable Frequency Drive with Controlled Speed Ramp: Programming a gradual speed increase during batch charging and start-up minimises initial air entrainment and prevents surface vortex formation before adequate liquid depth is established above the impeller.
- Hardened or Coated Impeller for Abrasive Duty: Specifying tungsten carbide coated or hardened stainless steel impellers for processing hard abrasive pigments extends tooth geometry service life and maintains consistent shear performance between scheduled maintenance intervals.
- Combining with Anchor or Slow-Speed Agitator: Installing a separate slow-speed anchor or paddle agitator in the same vessel provides bulk circulation throughout the vessel volume, feeding viscous or settled material continuously into the cowl impeller high-shear zone.
Applications
- Paint Mill-Base and Pigment Dispersion: Dispersion of titanium dioxide, carbon black, and organic pigments into resin vehicles during mill-base preparation for architectural and industrial paint production, the primary application for cowl agitator technology in manufacturing.
- Printing Ink Pigment Dispersion: Incorporation and deagglomeration of organic pigments and carbon black into flexographic, gravure, and offset ink vehicles during ink manufacturing and colour matching operations.
- Pharmaceutical Oral Liquid and Suspension Preparation: Dispersion of active pharmaceutical ingredients and insoluble excipients into oral liquid bases and suspension vehicles in GMP-rated jacketed batch vessels.
- Cosmetic Pigment Dispersion for Colour Cosmetics: Dispersion of iron oxides, ultramarines, and mineral pigments into oil and emulsion bases during colour cosmetic, foundation, and tinted moisturiser formulation and production.
- Adhesive and Resin Filler Incorporation: Dispersion of mineral fillers, fumed silica, and reinforcing agents into adhesive and resin systems during formulation and production of structural and assembly adhesive products.
Models & Capacities
Model | Scale | Tank Cap. (L) | Motor (kW) | Speed (RPM) | Viscosity Max (cP) | Tip Speed (m/s) | Shear Rate (1/s) | Stages | U (W/m2K) | Op. Temp (C) |
|---|---|---|---|---|---|---|---|---|---|---|
Cowl-LAB-5 | Lab | 5-50 | 0.25-0.55 | 500-3,500 VFD | 2,000 | 5-15 | 10^3-10^4 | 1 | 300-800 | 0-120 |
Cowl-LAB-50 | Lab/Pilot | 50-300 | 0.55-1.5 | 500-3,500 VFD | 5,000 | 8-20 | 10^3-10^4 | 1-2 | 300-1,000 | 0-120 |
SC100 | Pilot | 300-1,000 | 1.1-2.2 | 600-1,400 | 20,000 | 10-22 | 10^3-10^4 | 1 | 400-1,200 | 0-120 |
SC300 | Pilot/Prod | 1,500-4,000 | 2.2-5.5 | 600-1,400 | 40,000 | 10-22 | 10^3-10^4 | 1 | 400-1,200 | 0-120 |
DC200 | Production | 800-3,000 | 2.2-7.5 | 600-1,400 | 60,000 | 10-25 | 10^3-10^5 | 2 | 400-1,400 | 0-120 |
DC500 | Production | 4,000-10,000 | 5.5-11.0 | 600-1,400 | 100,000 | 10-25 | 10^3-10^5 | 2 | 400-1,500 | 0-120 |
TC300 | Production | 1,500-6,000 | 4.0-11.0 | 600-1,400 | 120,000 | 10-25 | 10^4-10^5 | 3 | 400-1,500 | 0-120 |
TC1000 | Large Prod. | 8,000-20,000 | 11.0-22.0 | 600-1,400 | 200,000 | 10-25 | 10^4-10^5 | 3 | 400-1,500 | 0-120 |
Cowl-HD | Heavy Duty | 2,000-15,000 | 7.5-30.0 | 600-1,400 VFD | 500,000 | 10-25 | 10^4-10^5 | 2-4 | 400-1,500 | 0-120 |
